What is SMT? In modern electronics manufacturing, SMT is undoubtedly a key technology for enhancing production efficiency and precision.

I will explain what SMT technology is, discussing the SMT process, and examine the advantages and challenges of SMT assembly. Additionally, I will analyze its diverse applications across various industries.

🏭Further reading : What is the reasonable price range of Injection Molding Cost?

What is SMT technology? What does SMT stand for?

I will provide a brief introduction to the definition and historical development of SMT, helping you to gain its basic understanding.

What are the advantages and disadvantage of SMT?

Even though SMT offers significant advantages in terms of cost, efficiency, and reliability, but it does not mean it has no challenges.

Below is an in depth exploration of the advantage and disadvantage of SMT to help you better understand its practical applications.

Since SMT does not require drilling holes on PCB, it significantly reduces processing and operational costs. Moreover, automated production has large scale manufacturing ability, which further lowering the production cost per unit.

Compared to traditional through-hole assembly technology, SMT offers faster production.

Automated equipment can efficiently mount components, reducing production time for the same workload from hours to minutes, which greatly enhances production capacity and shortens delivery times in mass scale manufacturing.

Since the SMT process mainly relies on machine automation, it has a significantly lower error rate compared to manual human operations.

Machine operations not only minimize human errors but also ensure precise soldering of each component, improving product quality and reducing failure rates.

In SMT, components are directly soldered onto the surface of the circuit board without the need for drilling holes, which simplifies the entire assembly process.

Compared to traditional through-hole assembly methods, SMT designs are more concise, improving assembly efficiency and enabling more compact product structures, which can contribute to smaller electronic devices.

Although SMT reduces labor costs during production, its initial equipment investment is relatively high. Automated placement machines and advanced soldering equipment require substantial capital investment, which can be a significant burden for small enterprises or low scale production.

SMT components are typically small and have narrow spacing, requiring a higher level of technical expertise and specialized tools for repair or replacement.

In cases of damage or malfunction, the repair process is more complex and costly than that of through-hole components. Additionally, for small scale or customized production, operators must possess higher technical skills.

Despite the disadvantages of SMT technology, these issues can still be avoided by selecting professional manufacturers with relevant experience.

A professional SMT manufacturers can provide advanced equipment and technical support, helping overcome challenges such as high equipment investment and maintenance complexity, allowing you to enjoy the advantages of SMT technology while minimizing its drawbacks.

SMD vs SMT: Which one to choose?

When discussing SMD and SMT, many people tend to be confused between the two. In fact, although they are closely related, they represent different concepts:

• SMD refers to the specific components used in surface mounting technology.

• SMT refers to the process of mounting SMD components onto PCB.

Easier way to understand is that SMD is the “component”, while SMT is the “process.”

Therefore, it’s not about choosing between SMD and SMT. Instead, SMD components require SMT technology for installation, making the two interdependent.

🏭Further reading : What are the common types of plastic fasteners?

How is the SMT process carried out?

The entire SMT process can be divided into four main stages.

If you’ve already chosen a preferred partner, it’s best to first confirm whether they follow these fundamental steps to ensure the delivered products meet standards and avoid potential losses due to quality issues.

Solder paste printing

Using a specially designed board (PCB stencil) and a scraper to evenly apply solder paste onto the circuit board’s pads.

To ensure the correct amount of solder paste covers each pad, automated printing machines are typically applied with built-in automatic inspection functions to check the coating status.

Sometimes, external 3D inspection equipment is used to verify whether the solder paste volume and distribution meet requirements, ensuring process stability and repeatability.

Components placement

Usually a high speed pick and place machine retrieves components from their packaging and precisely places them onto the designated locations on the circuit board.

The machine typically uses nozzles or gripping devices for fast and accurate operations, with some machines capable of placing up to 80,000 components per hour.

After placing the component, inspection is necessary to ensure correct positioning. If errors are detected at this stage, corrections can be made.

Otherwise, if errors are found after soldering, it can result in high rework costs and extended production times.

Reflow soldering

The circuit board is sent into a reflow oven, where infrared or convection heating melts the solder paste, forming stable solder joints.

The oven contains multiple heating zones, and the circuit board passes through each zone at a fixed speed, gradually heating until it reaches the required peak temperature for soldering.

It then moves to the cooling zone to return to room temperature, preventing overheating damage or poor solder joint contact.

This process demands strict control of the temperature, since excessive heating can damage components, while insufficient heating may result in unreliable solder joints.

Cleaning and quality inspection

Automated optical inspection (AOI) systems are commonly used for inspection, using 3D technology to check solder joint quality, component placement, and potential soldering defects such as solder bridges or cold joints.

Boards that pass inspection undergo cleaning process to remove excess solder paste residues and are then prepared for packaging. In the same time, labeling, sealing, and boxing based on customer requirements are performed in preparation for shipment.

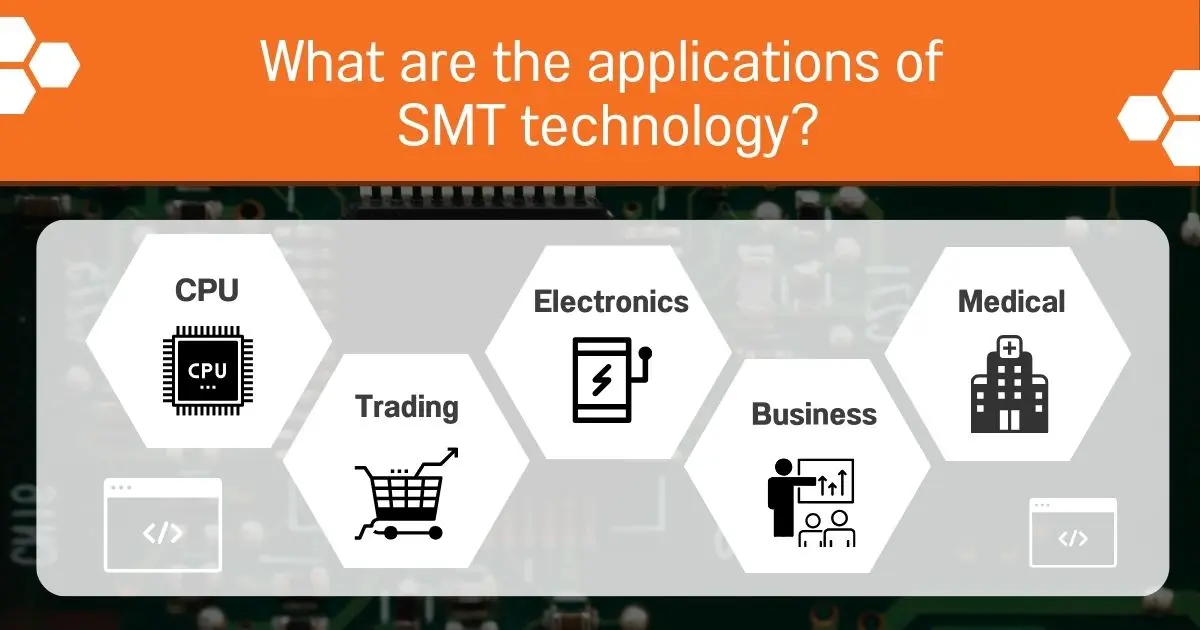

What are the applications of SMT technology?

By now, you should have a good understanding of SMT technology. Next, I will introduce the various application areas of SMT, and perhaps one of them aligns with your industry, may as well consider adopting SMT technology!

Through SMT technology, each physical core of a processor can simulate multiple logical cores and execute multiple command threads simultaneously.

In simple terms, even when a large number of complex computational tasks need to be processed at the same time, CPU can still efficiently allocate resources to deliver smoother performance.

This is especially beneficial in gaming, data analysis, multimedia processing, and virtualization environments, where SMT technology improves the computation speed, reduces latency, and enhances user experience.

AMD’s Ryzen series and Intel’s Hyper-Threading technology are the successful applications of SMT.

Businesses rely on highly efficient SMT based product trading systems to ensure a stable supply chain and quick market responsiveness.

Since the characteristics of SMT components are compact size, high density, and high performance, they can be applied in various consumer electronics, industrial equipment, and automation control systems.

Suppliers and distributors typically use advanced logistics technologies and data analysis to optimize inventory management and delivery speed, which further reducing costs and enhancing competitiveness.

Modern electronic products almost universally rely on SMT. Just like previously mentioned advantages, enable to achieve miniaturization and lightweight design. The common applications include smartphones, laptops, wireless earphones, and home appliances.

Thanks to SMT technology, manufacturers can quickly respond to market demand changes, particularly when efficient production of miniaturized, high performance electronic products is required.

At the same time, SMT technology has driven full development of supporting equipment (such as pick and place machines and reflow soldering equipment) and the electronic component supply chain.

By integrating SMT technology, businesses not only improve production efficiency but also ensure stable and reliable product quality.

The medical industry typically demands high precision, miniaturization, and reliability, all of which SMT technology addresses.

For example, heart rate monitors, implantable devices, imaging diagnostic equipment, and portable blood glucose meters, all benefit from the high density assembly and miniaturization capabilities of SMT, enabling faster manufacturing and shortening the production cycle of medical devices, helping companies bring products to market more quickly.

🏭Further reading :Why do we need custom injection molding?

Who to choose for SMT assembly? Hsin Hung Yih plastic is the right choice!

Hung Yih Technology or Hsin Hung Yih Plastic offers comprehensive SMT assembly services, from PCB manufacturing to full system integration. We support both automated SMT and SMD production, as well as high precision manual component placement.
